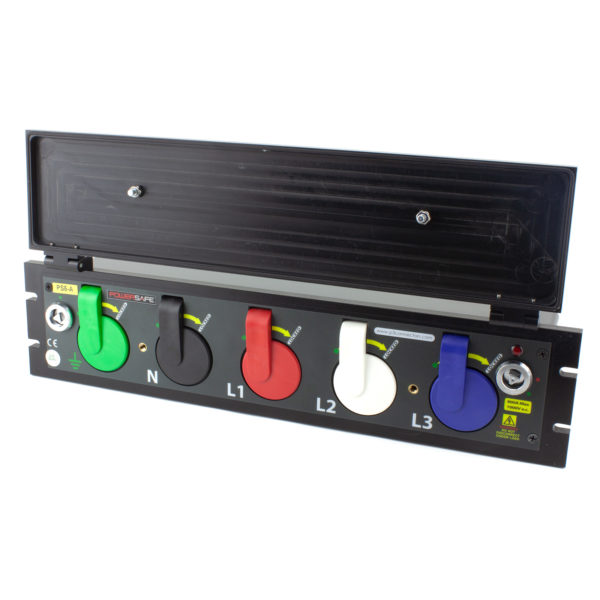

Powersafe Sequential Mating Box

AUD 1,914.29AUD 2,356.71 ex-GST

Clear
SKU: N/A Categories: ,

Additional information

Weight N/A
Dimensions N/A
Colours

AUS, EU, UK (Old)

Gender

Source, Drain

Ports

4 (No Neutral), 5

Lid

No Lid, Lidded (IP67)

Max Continuous Current Rating

Up to 800A

Surge Current

75kA

Short Circuit Rating

Up to 35.5kA

Mating Method

Bayonet Lock

Operating Volatge

1000V AC

Max Rated Voltage to Earth

2kV AC / 3kV DC

Minimum Flashover

9.5kV DC or AC Peak

Insulation Resistance

>5M ohms @ 500V DC

Ingress Protection

IP67 (EN60529)

Electric Shock Protection

IP2X

Flammability

UL94-V0

Mating Cycles

>500

Temperature

-30°C to +125°C
