Event Industry Connectors

Phase 3 are proud suppliers of event industry connectors to some of the events industry’s biggest companies. Showsafe are manufactured for stage lighting, rigging, audio visual stage equipment and stadium power distribution. We help connect event power in the safest and most reliable way. Circular connectors have been used at the World Cup, Glastonbury, the Olympics and many more global showcases.
Browse the store

Phase 3 for Music and the Event industry

Powersafe power connectors are mechanically keyed and locked meaning they have the highest ratings in reliability and safety. The high-current single pole connectors are utilised globally by the events industry. The connectors mate with the Tourmate Powersafe Sequential Mating Box, a compact 3 Phase, Neutral and Earth, generator connection point with a high current carrying capacity up to 800A.
Phase 3’s Powersafe are perfect for temporary power generators for large stadiums, festivals and events. The connectors will be used at the 2018 World Cup, Galstonbury and the Olympics and are fully compatible with VEAM and Litton.

Showsafe Circular Connectors

Showsafe Circular Connectors are available in 3 pin, 5 pin , 7 pin and 19 pin format. Phase 3’s multi-pin circular connectors are perfect for touring application, they’re manufactured in the UK to the highest industry quality making them perfect for life on the road. The gold plated contacts on the AV plugs and sockets are the choice of events professionals across the globe for stage lighting. They have been chosen to connect lighting at spectacles such as Glastonbury and even for major artists like Sir Paul McCartney!

Technical Specifications

UL Approved to UL1977 Standard
100% UK Manufactured & Assembled
Amphenol Socapex SL419 Compatible
3, 5, 7 and 19 Pin connectors are all rated 25A
Gold Plated Contacts
Integral Insulation Sleeves
M40 metric cable glands for multicore socapex cable pinout (bush sizes 10-32mm)
Socapex Breakout Wire sizes from 12 to 14 AWG (1.5-2.5mm)
IP67 ingress protection when mated
Temperature Rating -55oC to +125oC
Voltage Rating 600 VAC, 700 VDC max
FMLB Earth contacts
ROHS Compliant

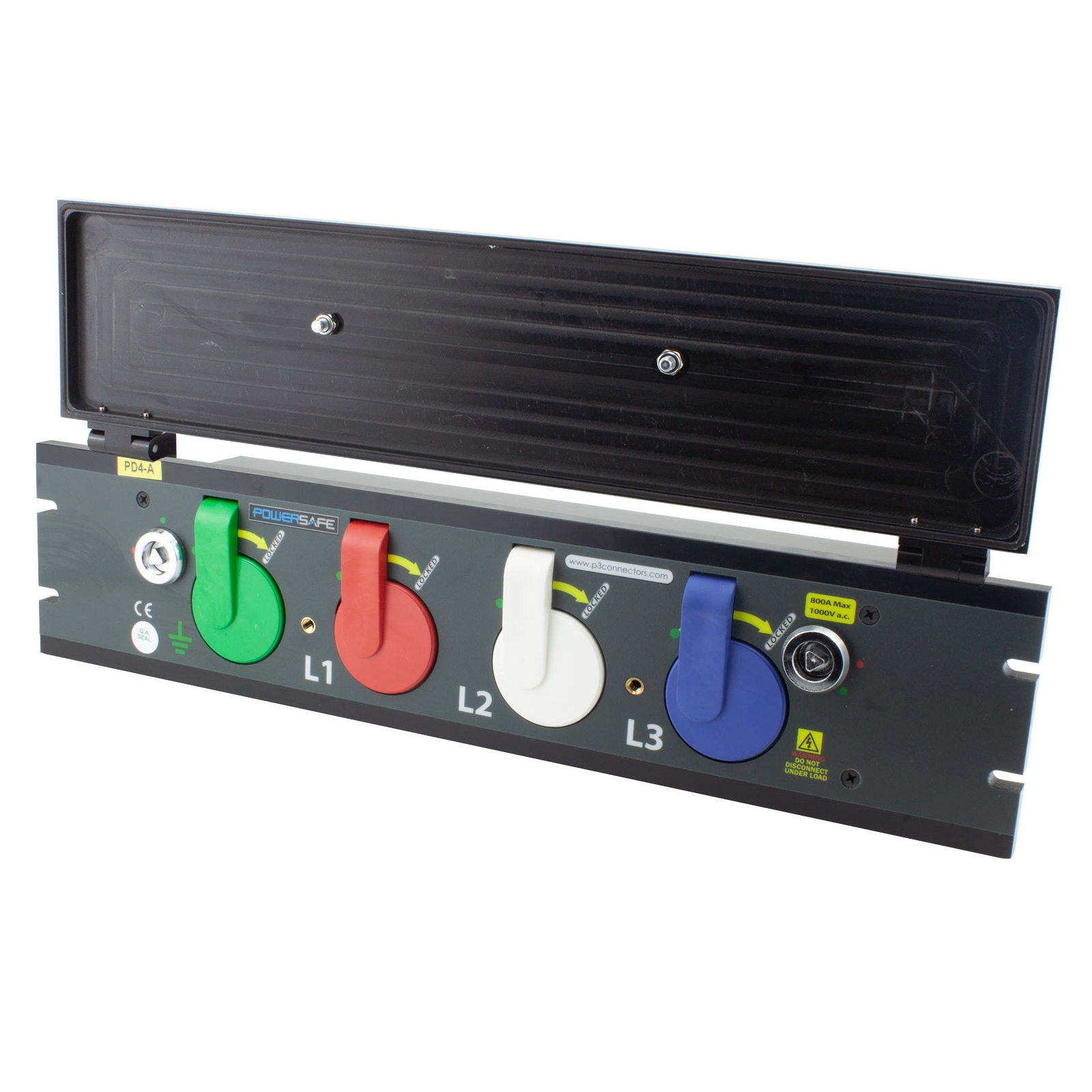

Powersafe Event Power Distribution Box

The Powersafe Sequential Mating Box is fast becoming the industry standard in power generator, control panel and switchgear connection points for high current connections up to 800A. The powerlock box’s sequence of connection and disconnection is controlled, therefore live lines cannot be mismated. As a result, Powersafe Sequential Boxes are the power and energy industry’s safest generator sockets. Data Centre and Temporary Power Distribution professionals choose the box for its added safety benefits, such as a rear fail-safe switch that will cut electrical power if tampering occurs.
The unit is available in Source or Drain versions rated at 800A to be compatible with all Phase 3 500A & 800A connectors as well as Veam 400A and 660A connectors. There is an optional lid available which ensures water and dust protection to IP67 rating.
