Powersafe

Single Pole Connectors

Phase 3’s Powersafe single pole connectors are the highest rated, safest and finest quality powerlock connectors as used by the power distribution, events, military and cable assembly industries worldwide.

Powersafe connectors are available as inline plugs and panel mount sockets that easily terminate to low voltage copper power cables (i.e H07RN-F) using industry standard crimp tools or set-screw contacts. Termination to aluminium cable is also possible with our bimetallic contacts.

Single Pole Power Connector
Single Pole Power Connector
Assembled in the United Kingdom

Phase 3’s electrical connectors are 100% manufactured and assembled in the UK to ISO 9001:2015 quality standards. Our Powersafe connectors are UL/VDE and CE certified. The electrical power connectors can be used for high current connections up to 800 amps in single or three phase electrical applications.

Mechanical Locking System

Secure coupling of plug and socket is achieved through an innovative mechanical locking system that disengages with a simple release key. The industrial plug’s powerlock mating system means Powersafe cannot be mismated or disconnected accidentally under load.

Product Details

Performance Enhancements
  • Increased Current Carrying Capacity (500A/800A)

  • Increased Short Circuit Ratings (35.5Ka)

  • Reduced Insertion Force

  • Rubber Hand Grip for ease of coupling

  • Cable Strain Relief (25mm-300mm)

  • Manufactured to ISO 9001:2015

Safety Features
  • Waterproof & Dust Protection Rating (IP67)

  • Colour-coded Keyed Locking Mechanism

  • Finger-Proof Protection against electric shock (IP2X)

  • Flame Retardant Materials (UL94-VO)

  • Improved Impact Resistance

  • UL Certified Product

Technical Drawings
Source Single Pole Power Connector Technical Drawing
Drain Single Pole Power Connector Technical Drawing

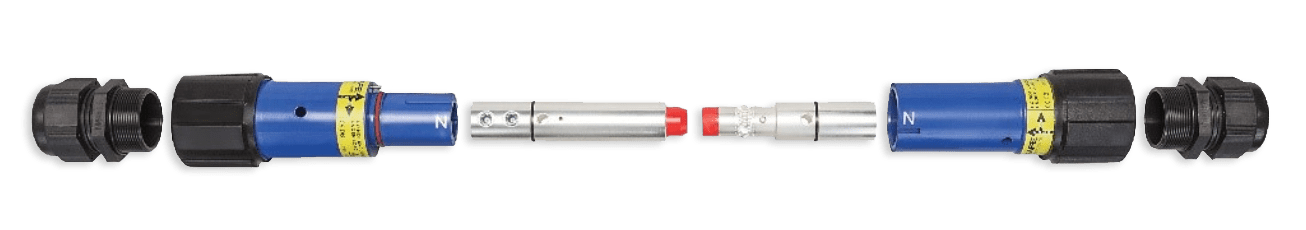

Powersafe Connector Gender Explained

Powersafe connectors are available in Source (Male Contact / Female Insulator) & Drain (Female Contact / Male Insulator) format.

Single Pole Power Connector

Source Connectors are usually the live end of the connection. Source connectors have a Male Contact and a Female Insulator.

Single Pole Power Connector

Drain Connectors are usually not live ends and receive the connection. Drain Connectors have a Female Contact and a Male Insulator.

Product Options

1. Choose Your Connector Format

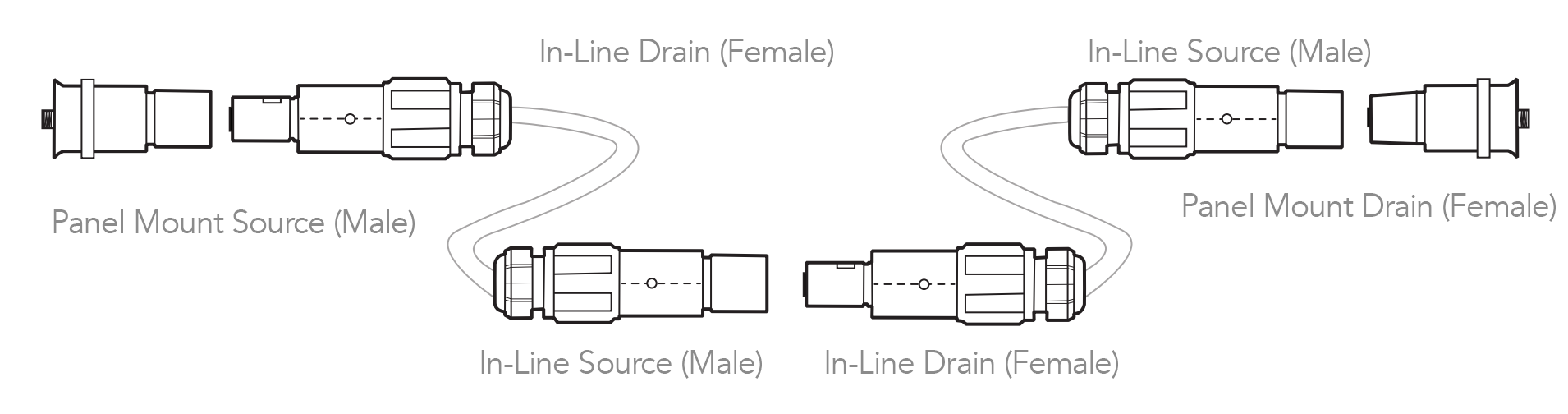

Line Connectors & Panel Mounts

Powersafe are available in line and panel mount format. Line Connectors are industrial plugs you can terminate onto copper or aluminium power cable (see bimetal connectors). Panel Mounts are industrial sockets you can install with either an M12 nut or M12 bolt.

Choose your connector format

2. Choose Your Region Colour

Regional Colour Guide

Regional Specific Colours

Each electrical line in a three phase circuit has its own colour code depending on the country it is being used in. Select your line or panel mount based on your specification. Find out more about international wiring colours or ask our sales engineers if you are unsure.

3. Choose Your Connector Gender

Source & Drain Powerlock Connectors

Powersafe are available in Source (Male Contact / Female Insulator) & Drain (Female Contact / Male Insulator) format. Use the slider on the image to help you distinguish between plug gender.

Source or Drain?
